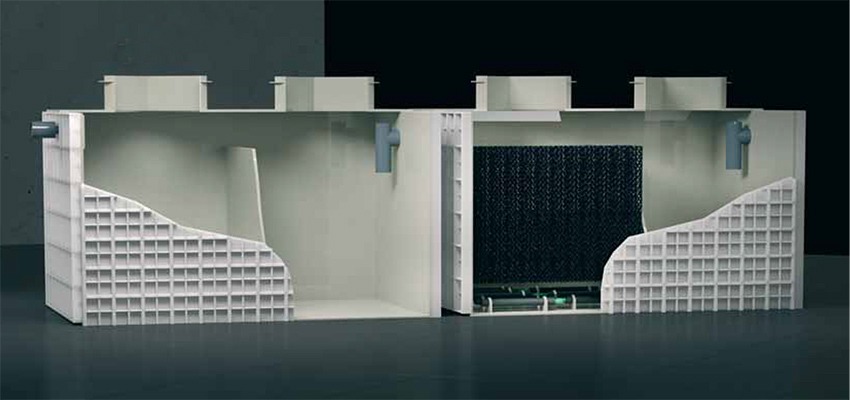

BP FBR P 51-300 PE
| Type of WWTP | PE | Q(m3/day) | BOD5(kg/day) | L(mm) | B(mm) | H(mm) | L1(mm) | B1(mm) | H1(mm) | Hin(mm) | Hout(mm) | DN(mm) | Power(W) | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BP FBR 51 | 51 | 7,65 | 3,06 | 3500 | 2160 | 2860 | 2530 | 2380 | 110 | 1,02 | 1116 | |||
| BP FBR 75 | 75 | 11,25 | 4,50 | 4500 | 2160 | 2860 | 2530 | 2380 | 110 | 1,50 | 1383 | |||
| BP FBR 100 | 100 | 15,00 | 6,00 | 6000 | 2160 | 2860 | 2530 | 2380 | 110 | 2,00 | 1758 | |||
| BP FBR 125 | 125 | 18,75 | 7,50 | 7000 | 2160 | 2860 | 2530 | 2380 | 160 | 2,50 | 2041 | |||
| BP FBR 150 | 150 | 22,50 | 9,00 | 8500 | 2160 | 2860 | 2530 | 2380 | 160 | 3,00 | 2415 | |||
| BP FBR 175 | 175 | 26,25 | 10,50 | 6000 | 2160 | 2860 | 4500 | 2160 | 2860 | 2530 | 2380 | 160 | 3,50 | 3137 |
| BP FBR 200 | 200 | 30,00 | 12,00 | 6500 | 2160 | 2860 | 5000 | 2160 | 2860 | 2530 | 2380 | 160 | 4,00 | 3379 |
| BP FBR 250 | 250 | 37,50 | 15,00 | 8500 | 2160 | 2860 | 5500 | 2160 | 2860 | 2530 | 2380 | 160 | 5,00 | 4081 |
| BP FBR 300 | 300 | 45,00 | 18,00 | 9500 | 2160 | 2860 | 6500 | 2160 | 2860 | 2530 | 2380 | 160 | 6,00 | 4647 |
